Stainless Steel Tactile Stud with Crosshatch Pattern on Top

By Eminent Tactiles | SKU# : ET-WTS009
Stainless Steel 316 Marine Grade
stud-icon SS 316
stud-icon SS 304


Color

Silver

Rose Gold

Yellow Gold

Blue

Black

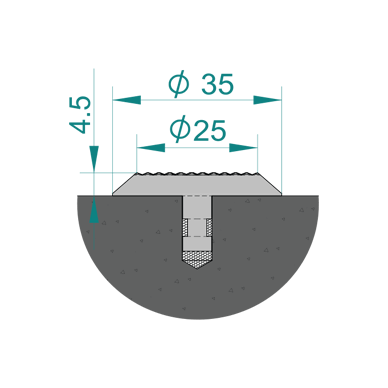

Diameter : 35 mm, 25 mm
Dimensions : 35 X 25 X 4.5 mm
Square Meter Ratio : 400 Studs per Sq.Mtr

Product Specification

Top of Studs :

Crossharch Diamonds

Suitable for Substrates :

Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals

Fixing :

Drill and fit with adhesive or diamond core and fit with adhesive

Special Options :

Customized sizes available on request, Thickness Can be availed
between 4.5 to 5mm as per request*

Australian Standards AS/NZS 1428.4.1:2009. | National Building Code 2016 (India)

5-Year Warranty

About this Product

Introducing our premium Stainless Steel Tactile Warning Studs with a Crosshatch Pattern, perfect for enhancing safety and navigation in public spaces. Each stud is meticulously crafted with a distinctive crosshatch diamond pattern on top, providing an effective tactile signal for the visually impaired while also adding a touch of elegance to any surface.

These tactile studs are versatile and can be securely installed on a wide range of substrates including stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, and metals. Installation is straightforward, offering two methods: either drill and fit with adhesive or use a diamond core technique for a more integrated fit.

What sets our studs apart is the option for customization. Understanding that each project has unique requirements, we offer customized sizes upon request. Additionally, the thickness of these studs can be adjusted between 4.5 to 5mm to suit specific needs.

Quality and compliance are at the forefront of our design. These tactile warning studs meet the stringent standards set by the Australian Standards AS/NZS 1428.4.1:2009 and the National Building Code 2016 of India, ensuring that they are not only aesthetically pleasing but also meet the highest safety and durability standards.

Choose our Stainless Steel Tactile Warning Studs for a combination of functionality, style, and compliance, tailored to your specific requirements. Enhance the safety and navigability of your space with these elegant and reliable tactile solutions.
